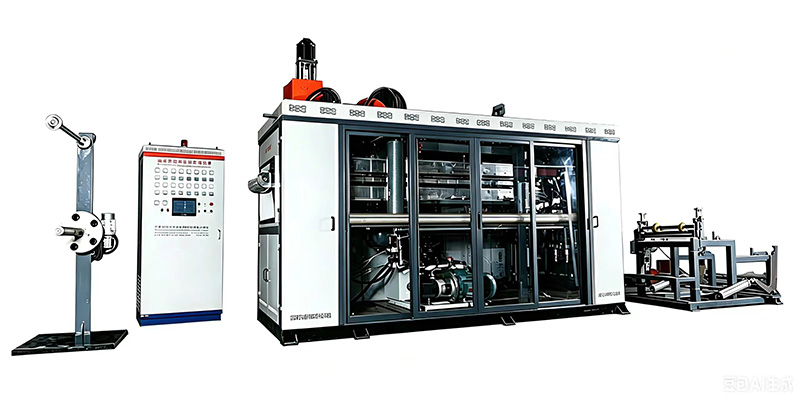

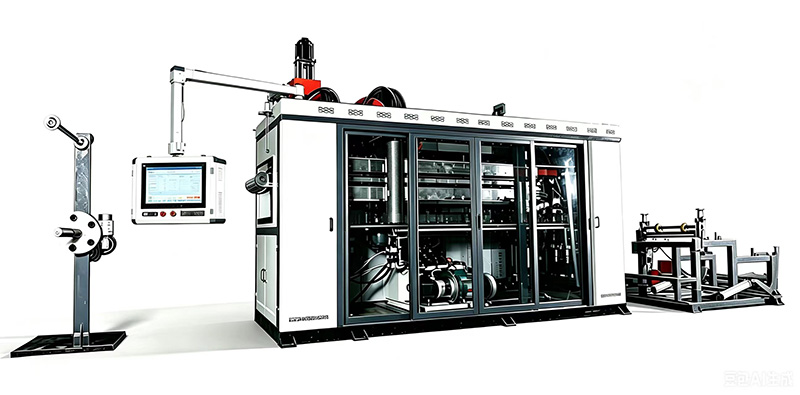

HY全自动液压热成型机

主要技术参数表

HY 全自动液压热成型机适用于生产 PP、PS、PE、PET、PVC 材质的塑料杯、餐盒、托盘及盖材。本机搭载 PLC + 人机交互触控控制系统，整机结构设计合理，具备操作简单、节省人工、维护成本低、生产效率高等优势。设备采用液压 + 气动复合驱动系统，对比传统机械凸轮式机型，具备运行噪音小、冲压成型力更大、成型产品质量稳定、设备使用寿命更长等核心优势。

型号	HY-720	HY-750	HY-850	HY-950
Forming Area	680*350mm	700*420mm	850*560mm	950*600mm
Suitable Material	PP, PE and PS (machine could be modified to work with PET)	PP, PE, PS & Bio-degradable material (machine could be modified to work with PET)	PP, PE, PS & Bio-degradable material (machine could be modified to work with PET)	PP, PE, PS & Bio-degradable material (machine could be modified to work with PET)
Driving Type	hydraulic and pneumatic	hydraulic and pneumatic	hydraulic and pneumatic	hydraulic and pneumatic
Forming Speed	≤25 cycles/min	≤25 cycles/min	≤22 cycles/min	≤20 cycles/min
Forming Depth	≤120mm	≤120mm	≤160mm	≤160mm
Suitable Sheet Width	680mm (adjustable) in max.	700mm (adjustable)	850mm (adjustable)	950mm (adjustable)
Working Pressure	0.6-0.8Mpa	0.6-0.8Mpa	0.6-0.8Mpa	0.6-0.8Mpa
Air Consumption	2200L/min	2500L/min	2500L/min	2500L/min
Exhaust Flow of Air Compressor	2200-3000L/min	2500-3000L/min	2500-3000L/min	2500-3000L/min
Water Consumption	≤0.5m3	≤0.5m3	≤0.5m3	≤0.5m3
Dimension	3700×1470×2350mm	3760×1560×2350mm	4500×1670×2500mm	4500×1840×2600mm
Motor Capacity	7.5KW	11KW	18.5KW	18.5KW
